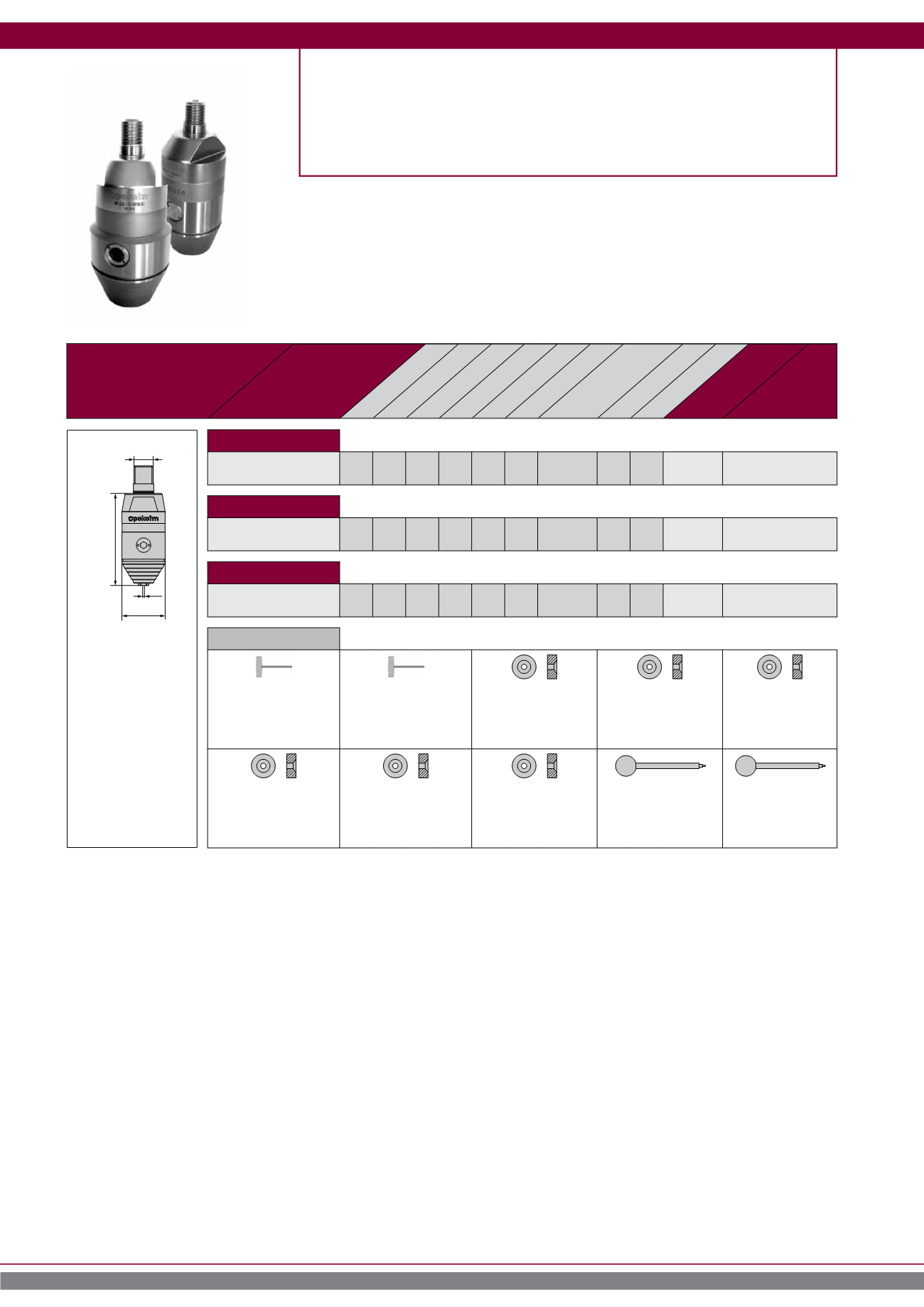

pokolm - ARBOR AND ADAPTOR SYSTEM - page 40

40
latest items!  available as long as stock lasts  on request  stock item, subject to confirmation 
SCREW ON TYPE CNC PRECISION
DRILL CHUCKS
M16 thread connection
M16 thread connection
Catalogue no. Form/DIN AccessoriesFeatures d1 l3 A d3 d4 d 2 l2 l1
d3/d4
l 3
d2
d1
diam. 0,3 - 8 mm
BF 0,3-8 M16 IC diam.
8
75 - 36 36 M 16 - - - A, C, D, I  
diam. 0,5 - 13 mm
BF 0,5-13 M16 IC diam.
13
100 - 50 50 M 16 - - - B, E, F, J  
diam. 2,5 - 16 mm
BF 2,5-16 M16 IC diam.
16
100 - 50 50 M 16 - - - B, G, H, J  
Accessories
INBUS 4T
INBUS 4T
A > Page138
INBUS 6T
INBUS 6T
B > Page138
BF08DS04
seal gasket 08DS04
C > Page140
BF08DS08
seal gasket 08DS08
D > Page140
BF13DS06
seal gasket 08DS08
E > Page 140
BF13DS13
seal gasket13DS13
F > Page140
BF16DS06
seal gasket16DS06
G > Page140
BF16DS16
seal gasket 16DS16
H > Page140
BF08MW
hexagon key 08MW
I > Page140
BF13MW
hexagon key 13MW
J > Page140
CNC precision drill chuck
• Can be used up to 7,000 rpm
• With internal coolant supply
• independent of rotating direction
• extremely short and slim design
delivery extent includes small and large seal ring
Adapters, extensions, collet chucks and precision drill chucks
