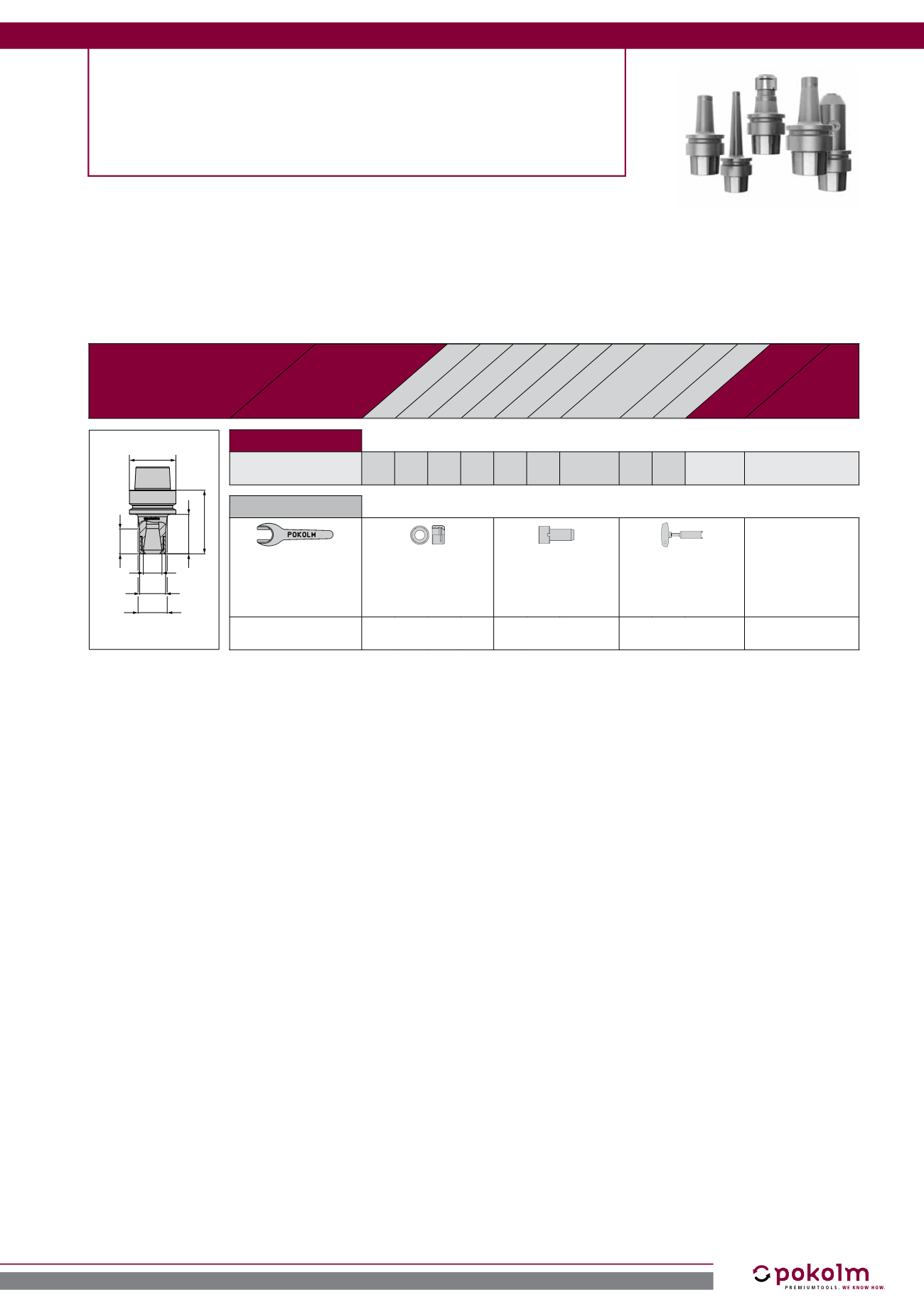

HSK 50 FORM E
HSC precision collet chucks ER20
• Hollow taper shank arbors according to DIN69893 form E, maximum precision
• fine balanced to G 2.5 gmm at 30,000 rpm
• with internal coolant supply and bore hole for the coolant supply tube
HSC precision collet
chucks ER20
Catalogue no.
Form/DIN
Accessories
Features
d
1
l
3
A d
3
d
4
d
2
l
2
l
1
A
d
2
l
3
l
1
d
4
d
3
d
1
for ER 20
50 ER20 E50 ER 20 50 76 28 32 HSK
50
form E
-
33.8 A, B, C, D
Accessories
20 501
spanner for ER 20 collet
chuck tightening nut
A > Page
ER20 001
tightening nut ER 20
B > Page
KMR-50A
coolant supply tube for
HSK-tooling
C > Page
SCHLUESSELHSK50
spanner for coolant
tube
D > Page
