Result:
Outstanding smooth running, high surface quality and hardly any noticeable wear on the indexable insert in conjunction with
the highest contour accuracy, ensured perfect preparation of the mould for the following finishing process.
sLOTWORX
®
HP
has proven to be the ideal solution for this task. The extremely low insert wear also increases the cost
efficiency of this milling system.
from practice to practice

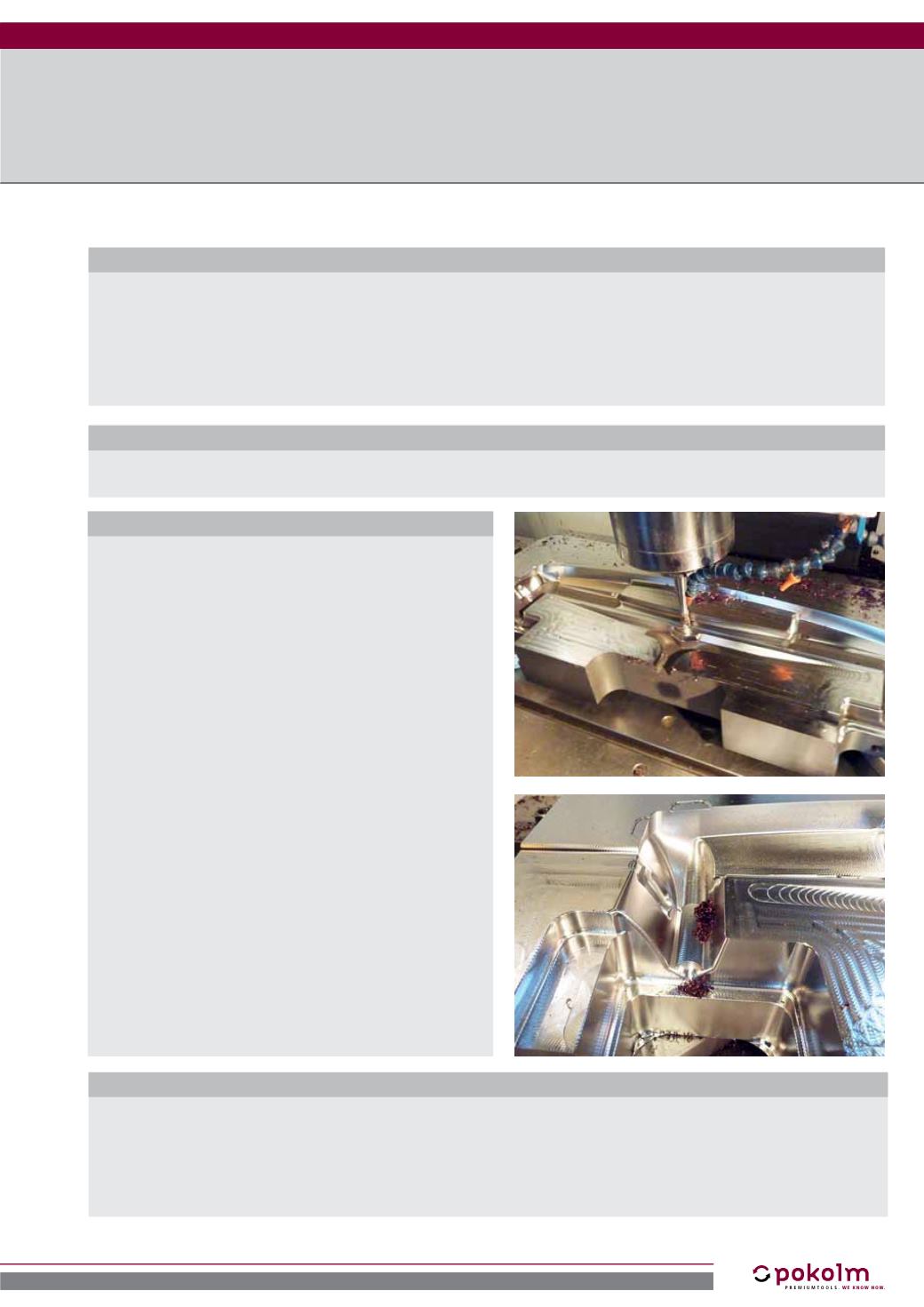

job description:
Stock material machining of a plastic injection mould and preparing for finishing with a constant depth of cut of 0.2 mm.
The dimension created by the predecessor tool before hardening amounted to 3 mm.
Especially on inner radii and narrow grooves, the proportion of full cuts is a critical point.
This can lead to significantly increased wear on indexable inserts.
Major requirement/archivement: secure machining of the complete part without machine down time.
MACHINE
Millstar LMV 1200
MATERIAL
1.2344 52 HRC
programming system
Heidenhain iTNC 530
Application parameters:
component:
Injection moulding tool
material:
1.2344 52 HRC
arbor:
75 08 754
cutter body:
sLOTWORX
®
HP
4 16 266
insert:
02 66 835 R20
coating:
PVTi
Vc
(speed):
140 m/min
Vf
(feed rate):
5,000 mm/min
S
(revolutions):
2,700 1/min
d1
(nominal diameter)
:
16 mm
fz
(feed per tooth):
0.46 mm
ap
(depth of cut):
0.3 mm
ae
(width of cut):
up to 16 mm
tool life:
> 110 min
life length:
> 550 m
