ASSEMBLING INSTRUCTIONS
for Coolant supply tubes for HSK Form A
When using HSK-A arbors with internal coolant supply, it is necessary to assemble these arbors with a coolant supply
tube. To assemble, please follow the instructions below. The required accessories are mentioned for every arbor size.
Usually, the seal ring (2) is already assembled in the
coolant supply tube (3). If it has come loose, please put
it back to the sealing groove (3a) of the supply tube (3).
Step 1
Step 3
Step 2
Insert the narrow end of the tube (3) into the
spanner (4).
Screw the tube (3) into the arbor (1) from the bottom
up and make sure that the seal ring (2) is not off-cen-
tre or squeezed. Otherwise it loses its sealing function.

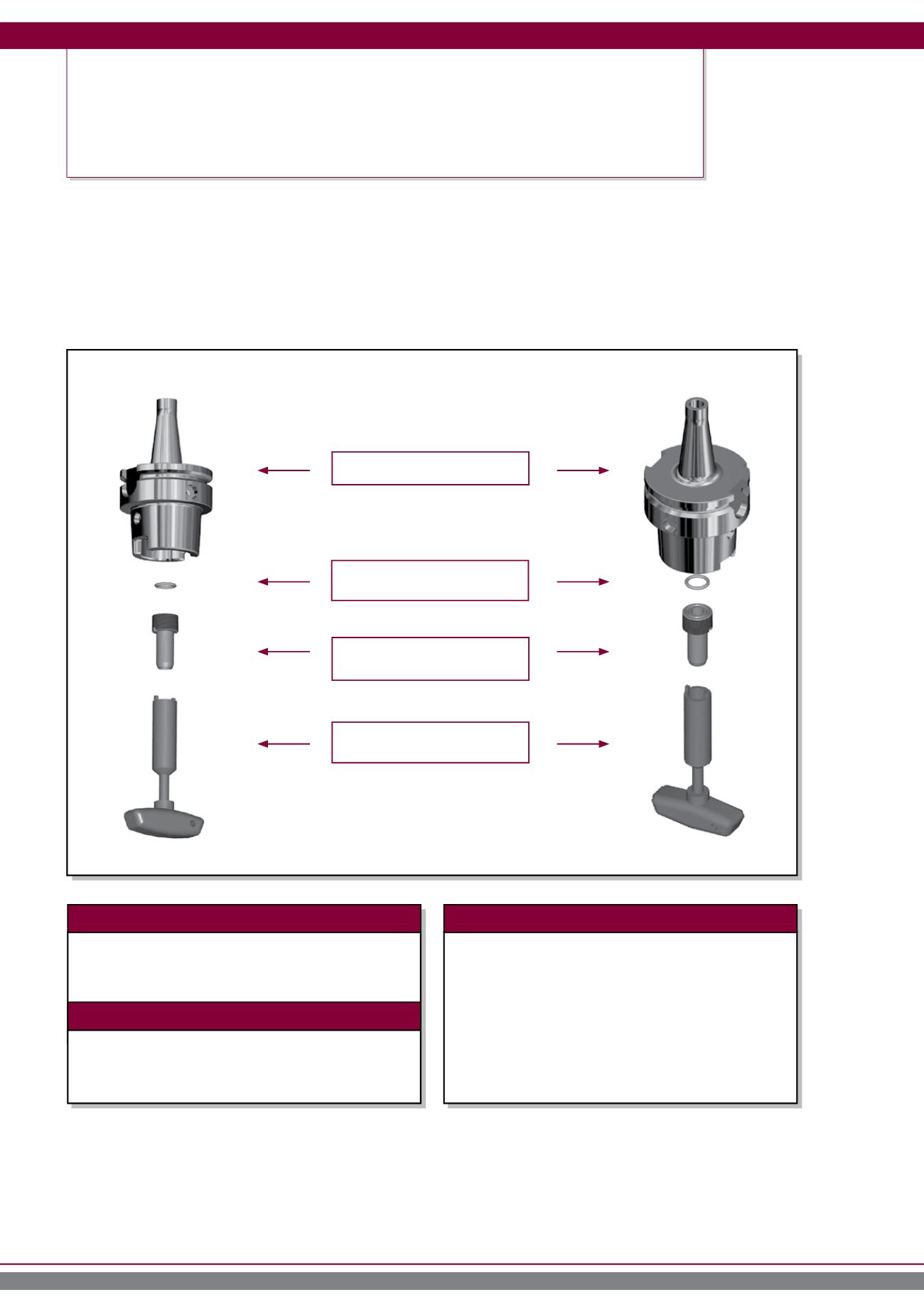

Arbor HSK-A (1)
Seal ring (2)
(integrated in coolant supply tube)
Coolant supply tube (3)
with seeling groove for sealing rings (3a)
Assembly spanner (4)
Assembling instructions f. coolant supply tubes f. HSK Form A
