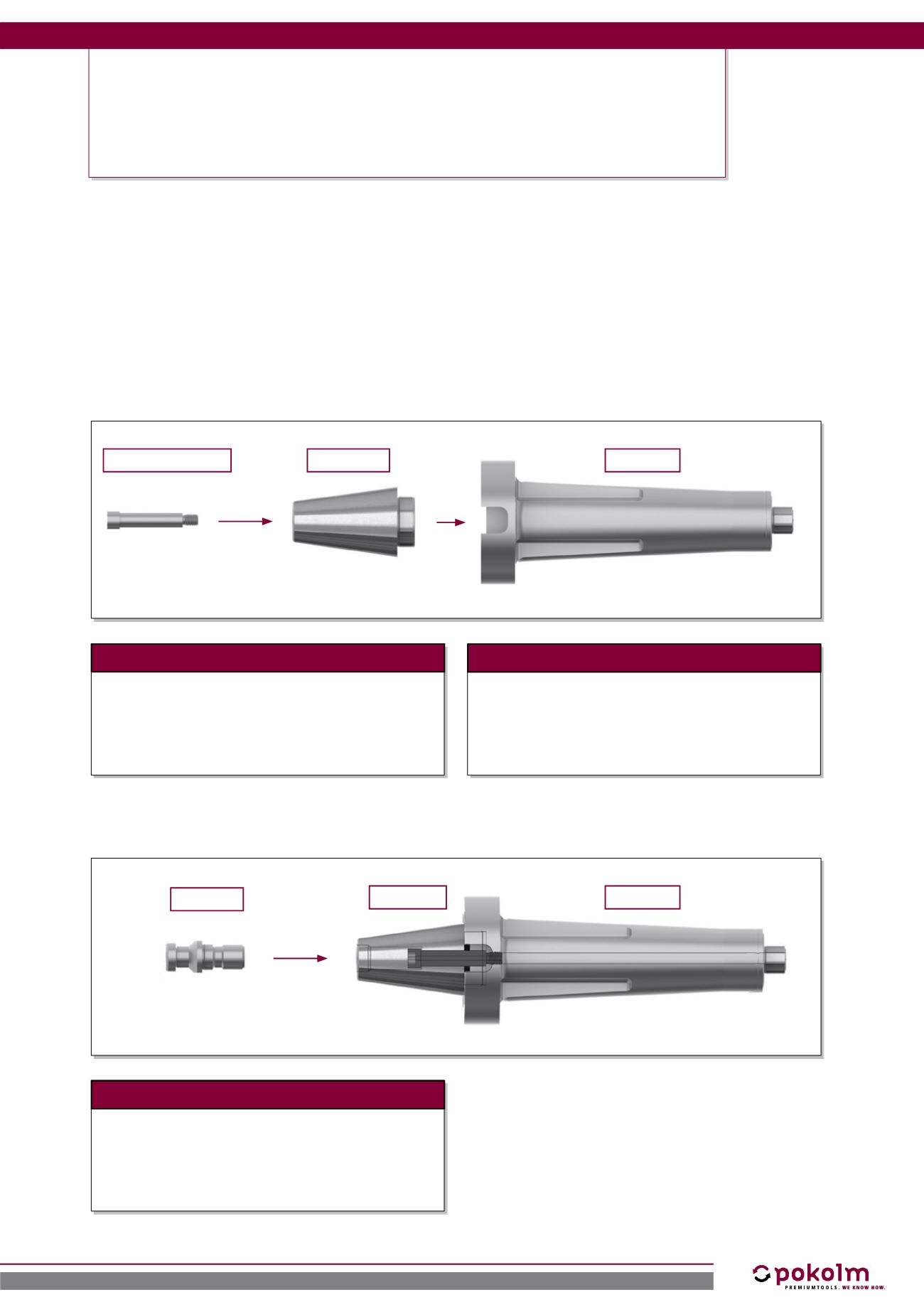

ASSEMBLING INSTRUCTIONS
Centering arbor and flange contact surface
In order to ensure a trouble-free insertion into the machine during centering and screwing-on the flange contact sur-
face make sure that the centering arbor and the flange contact surface are not screwed together tightly. The fastening
screw that is provided is constructed in such a way that it prevents the centering arbor and the flange contact surface
from becoming tightly screwed together.
Please observe the following instructions:
Insert the centering arbor into the corresponding fit-
ting of the flange contact surface.
Insert the tightening bolt that is provided into the cen-
tering arbor and screw into the threading of the flange
contact surface with an Allen key (10 mm) and then
tighten by hand. Now the centering arbor and the flan-
ge contact surface are connected to each other.
Screw the retaining bolt into the inside thread of the
centering arbor and tighten by hand.
The flange contact surface can now be inserted and
screwed to the machine.
Flange contact
surface
Tightening bolt
Assembly of the centering arbor:
Step 1
Assembly of the retaining bolt :
Centering arbor
Flange contact
surface
Retaining bolt
Centering arbor
Step 2
Step 1
151
Assembly instructions - flange contact surface centering arbor
