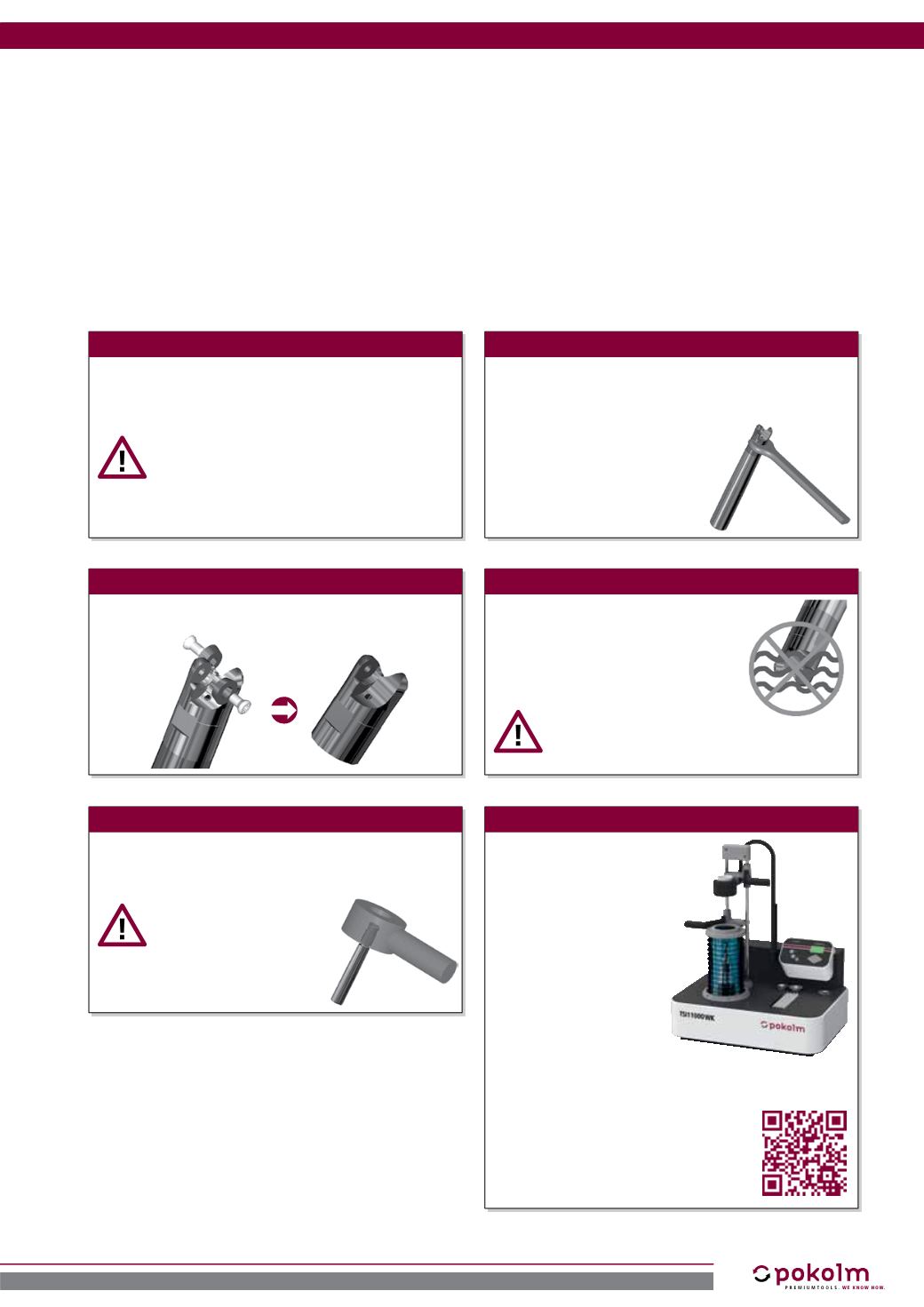

Dismantling:
Preparations
Step 1
Step 2
Step 3
Step 4
Get all the necessary accessories and equipment together
at the workstation before starting heating procedure! (ap-
propriate spanner, safety glasses, protective gloves)
Heat your used combination with the Pokolm Inductive
Shrinking Unit for 6 to 15 seconds, depending on dia-
meter.
Attention: Adaptor and
milling cutter body are still
very hot!
Danger of burning hands or fingers!
Protective gloves MUST be worn!
Attention: You absolutely MUST wear your
safety glasses when dismantling! Used tools
carry swarf and cooling fluid residues which
could spray out during operation!
Remove inserts and screws from milling cutter body.
Attention: Adaptor and milling
cutter body are still very hot!
Danger of burning hands or fingers!
Protective gloves MUST be worn!
Inductive heating expands the fitted bore in your cutter body.
Only after heating should you unscrew your cutter body
from your adaptor using an appropriate
spanner.This step must be possible to
perform without strength. If there is
still some resistance, please heat the
cutter body once more for a few se-
conds and try again.
Do not shock cool your unshrunk dis-
mantled parts;use the cooling equip-
ment of your shrinking unit to cool it
slowly, or use the deposit box.
For further inquiries concerning the DUOPLUG
®
sys-
tem, please do not hesitate to contact us.
Recommendation
For the shrinking process
we recommend our com-
fortable Shrinking Station
TSI11000WK with a great
number of innovative attri-
butes. Perfectly matched
to POKOLM products, the
semi-automatic shrinking
and fluid-supported cooling
process is run in a single
position in the unit. The ope-
ration concept is especially
user friendly.
For more information order the POKOLM
brochure about Shrinking technology.
You can also find it as PDF file at the
download area of the POKOLM Website,
or simply follow the QR Code:
