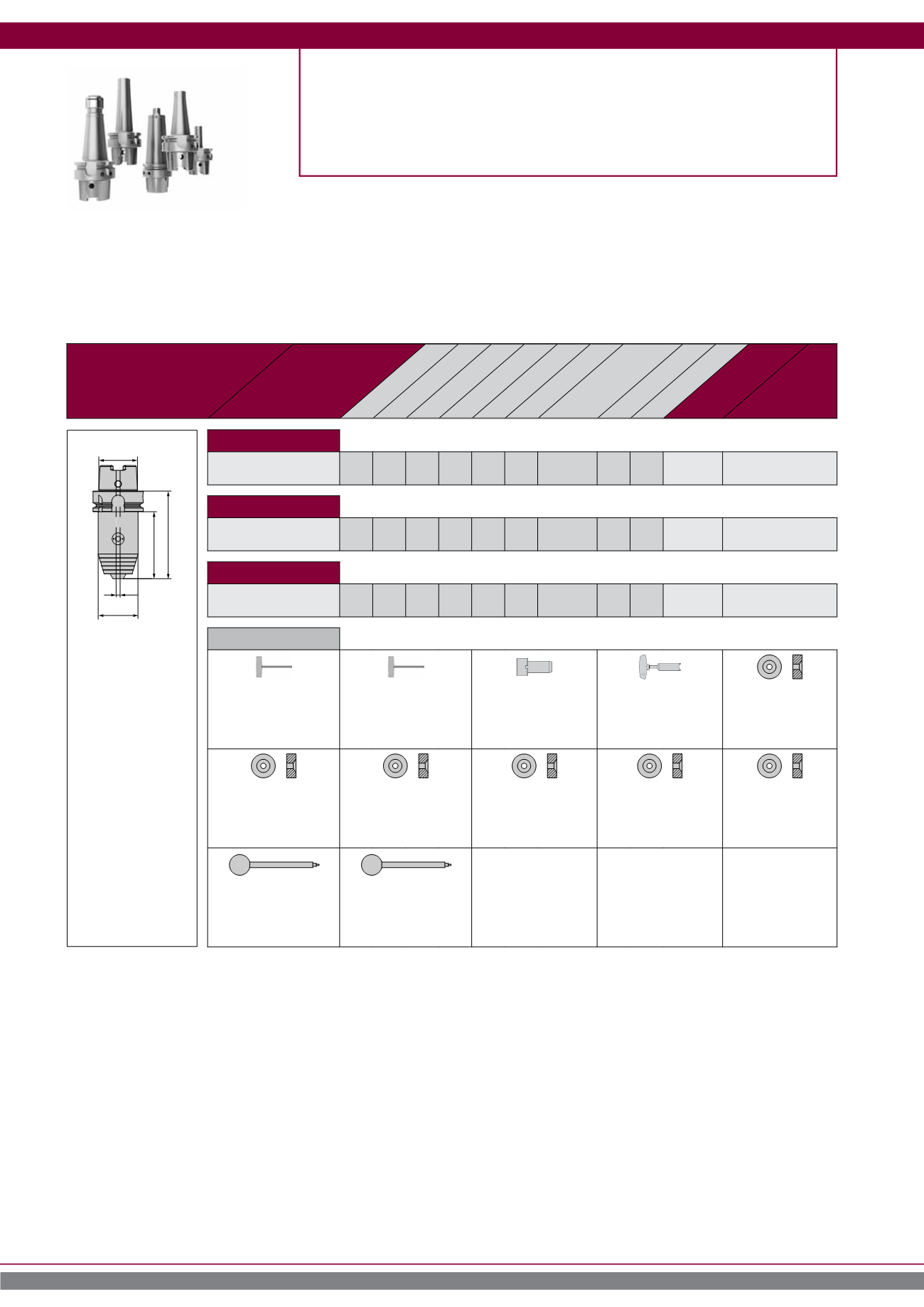

HSK 63 FORM A
Drill chuck
Drill chuck
Catalogue no. Form/DIN AccessoriesFeatures d1 l3 A d3 d4 d 2 l2 l1
A
l 3
d2
d3/d4
d1
diam. 0.3 - 8 mm
BF 0,3-8 A63 IC diam.
8
73 99 - 36 HSK
63
form A - - A, C, D, E,
F, K  
diam. 0.5 - 13 mm
BF 0,5-13 A63 IC diam.
13
84 110 - 50 HSK
63
form A - - B, C, D, G,
H, L  
diam. 2.5 - 16 mm
BF 2,5-16 A63 IC diam.
16
89 115 - 57 HSK
63
form A - - B, C, D, I,
J, L  
Accessories
INBUS 4T
INBUS 4T
A > Page138
INBUS 6T
INBUS 6T
B > Page138
KMR-63A
coolant supply tube for
HSK-tooling
C > Page139
SCHLUESSELHSK63
spanner for coolant
tube
D > Page139
BF08DS04
seal gasket 08DS04
E > Page 140
BF08DS08
seal gasket 08DS08
F > Page140
BF13DS06
seal gasket 08DS08
G > Page140
BF13DS13
seal gasket13DS13
H > Page140
BF16DS06
seal gasket16DS06
I > Page140
BF16DS16
seal gasket 16DS16
J > Page140
BF08MW
hexagon key 08MW
K > Page140
BF13MW
hexagon key 13MW
L > Page140
• Hollow taper shank arbor CNC precision drill chuck according to DIN69893 form E,
maximum precision
• approved for up to max. 7,000 rpm
• We can supply higher balance quality according to the balance classes on request
• with internal coolant supply and bore hole for the coolant supply tube
• independent of rotating direction
• extremely short and slim design
Scope of delivery includes small and large seal ring
Hollow taper shanks HSK
