major application minor application roughing pre-finishing finishing        
Helix
D min max
d1
Cutter diam.
d1 Dmin Dmax
16 21.3 32
20 29.3 40
25 39.3 50
32 53.3 64
42 73.3 84
52 93.3 104

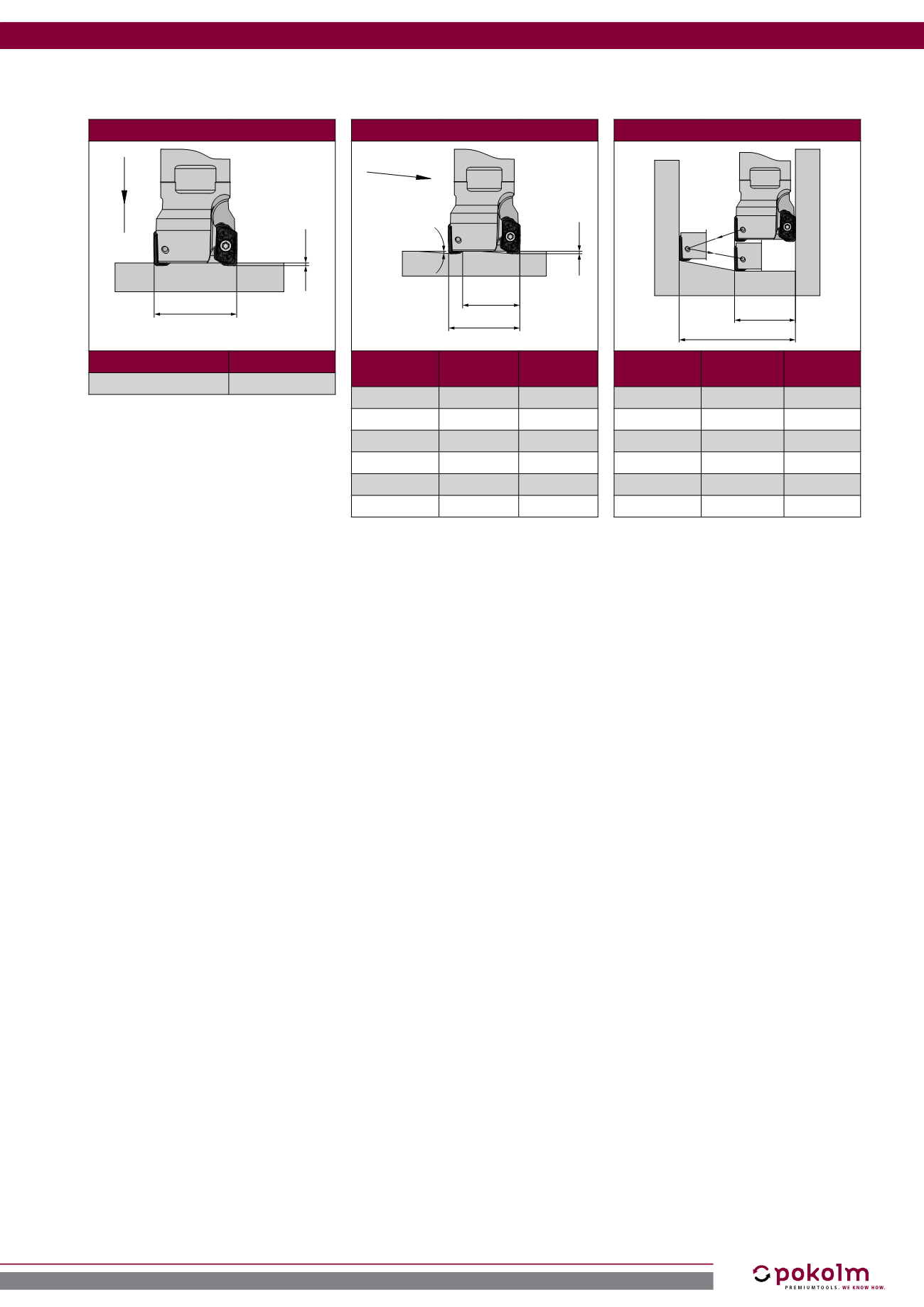

Extended operation data
Ramping
α
d1
Y
X
Cutter diam.
d1 α° y
16 <24,5 5.3
20 <14,5 9.3
25 <8 14.3
32 <5 21.3
42 <3 31.3
52 <2,5 41.3
Plunging
d1
X
Cutter diam. d1 X max
16-52 2.5
