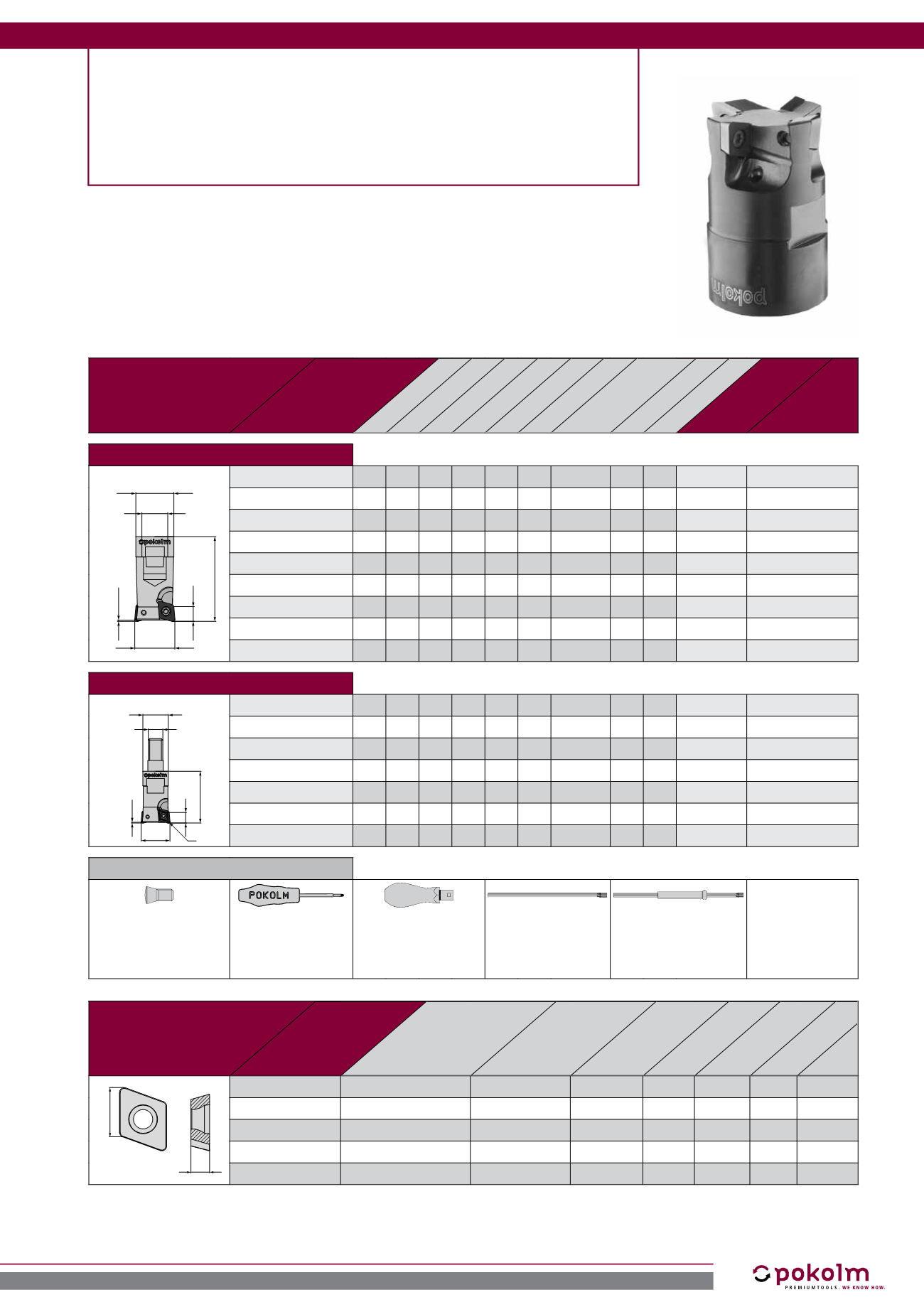

XDHW | XDHT 06
diam. 16 - 35 mm | r2
Universal milling cutters for finishing and profile milling with small radii.
• particularly smooth operating in corners and pockets
• low energy consumption
Indexable inserts
Catalogue no.
DIN Specification
Carbide Grade
Coating
l
s
r
M
s
l
02 79 835 R2 XDHW 060220 SN
HSC 05
PVTi
6.5
2.38
2
M 2.5
Milling cutter bodies
Catalogue no.
Accessories
Features
d
1
l
r
l
3
l
2
l
1
d
2
d
3
z
DuoPlug®
l
2
d
1
l
l
3
d
3
d
2
16 282 SG 16 6.5 2 31 1.3 -
M 10 15 2 A, B, C, D, E
20 282 SG 20 6.5 2 31.5 1.3 -
M 12 18.5 3 A, B, C, D, E
25 282 SG 25 6.5 2 37.5 1.3 -
M 16 23.5 4 A, B, C, D, E
Threaded shank end mill bodies
r
l
2
l
l
3
d
3
d
2
d
1
16 282 16 6.5 2 28.5 1.3 -
M 8 13.8 2 A, B, C, D, E
20 282 20 6.5 2 28.5 1.3 -
M 10 18 3 A, B, C, D, E
25 282 25 6.5 2 32.5 1.3 -
M 12 21 4 A, B, C, D, E
30 282 30 6.5 2 32.5 1.3 -
M 12 21 5 A, B, C, D, E
35 282 35 6.5 2 42.5 1.3 -
M 16 29 6 A, B, C, D, E
Accessories
25 500
Torx screw
A > Page
07 500
Torx-screwdriver
B > Page
TV 04-1
Screwdriver torque
Vario®-S with window
scale, C > Page
T7 500
Torx interchangeable bit
for Torque Vario®
D > Page
T7 502
Torx MagicSpring compati-
ble bit f. Torque Vario®
E > Page
