Planworx in 1.0570 /
1015 /
St 52 - 3
major application
minor application
roughing
pre-finishing
finishing
Machining types
Connection types
Properties
Sizes
Page
Practical video
diam. 40 - 250 mm 28
uu
Negative, therefore extremely stable basic form
uu
Eight reliably usable cutting edges
uu
Easy cutting due to highly positive
indexable insert geometry
uu
Non-uniform indexing for less vibrations
uu
Coolant drillhole for fluids up to tool diameter
of 125 mm
uu
Outstandingly smooth running
uu
Approach angle Kappa ~ 45°

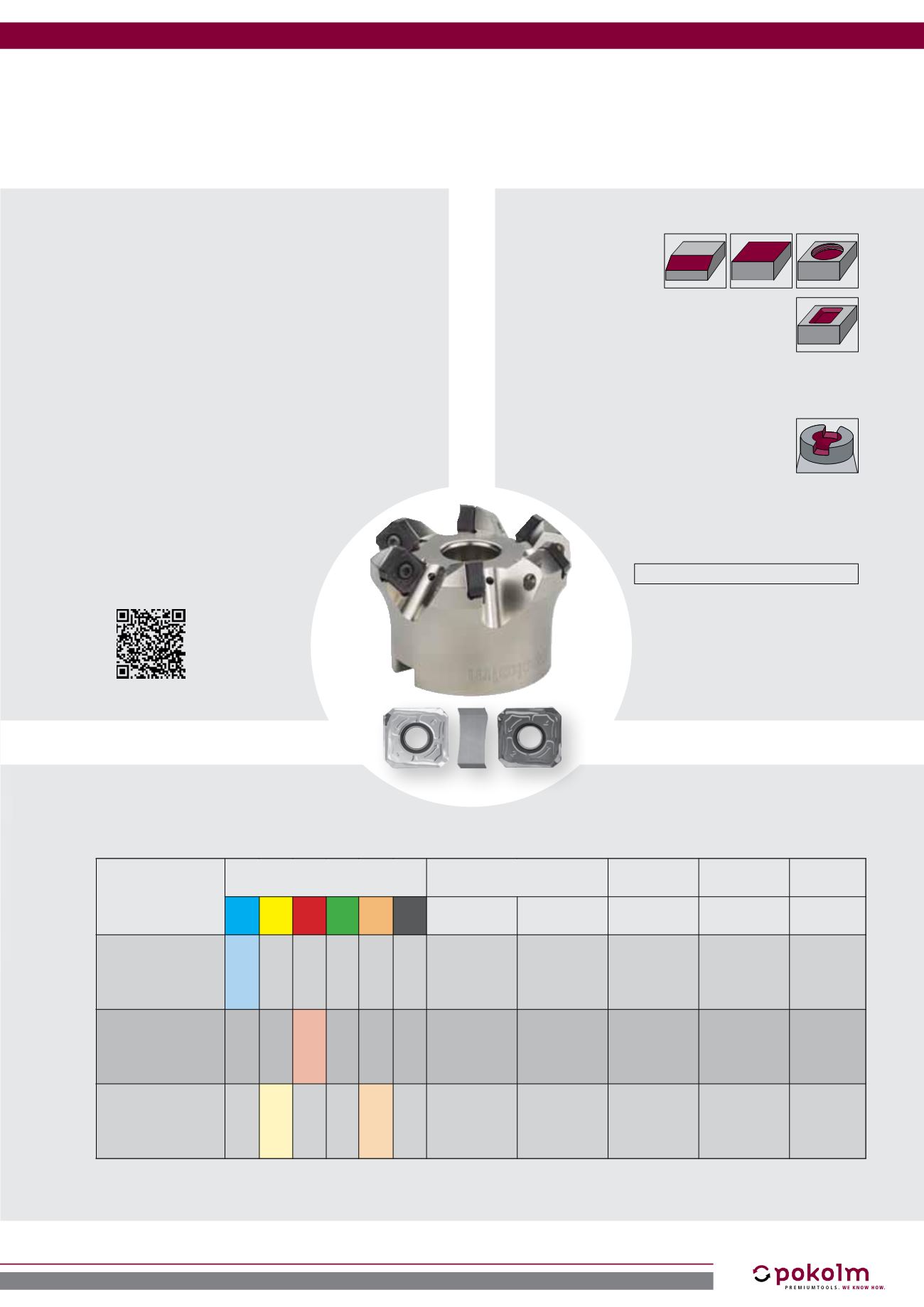

PLANWORX
®
FACE MILLING CUTTERS
Highly economic with large cutting depth and outstandingly smooth running
P M
K
N S
H
0,08 - 0,55
0,1 - 6,0
13
5,4
0,8
0,1 - 0,55
0,1 - 6,0
13
5,4
0,8
0,08 - 0,3
0,1 - 4,0
13
5,4
0,8
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Cutting materials
Carbide grade
Coating
P40 PVSR
K10 PVTi
M40 PVST
ISO standard
feed per tooth | d.o.c.
f
z
(mm)
a
p
(mm)
length
l (mm)
thickness
s (mm)
radius
r (mm)
