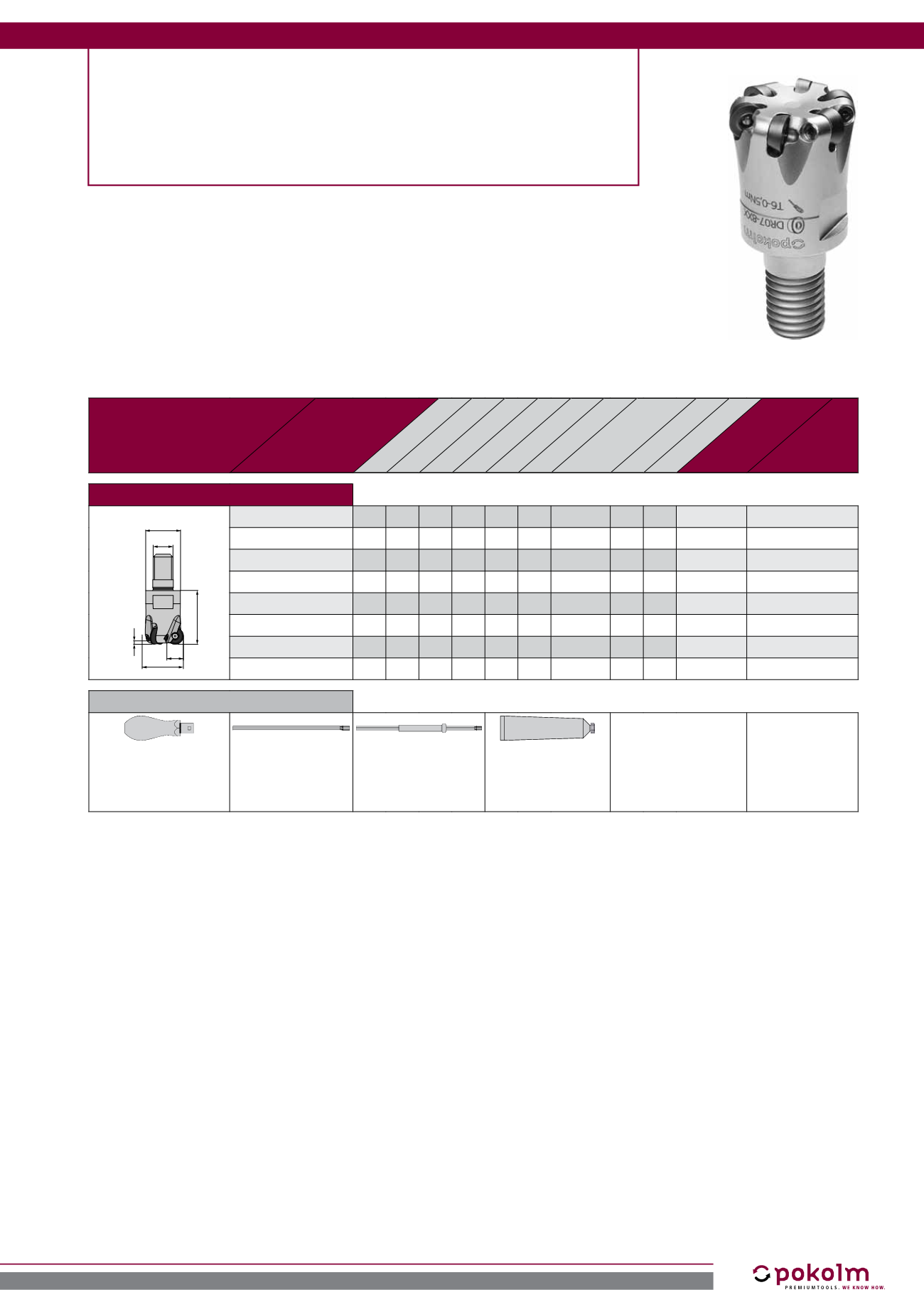

59
major application
minor application
roughing
pre-finishing
finishing
SPINWORX®
r3.5 - diam. 16 - 35 mm, 7° positive rake angle
The SPINWORX system in its smallest version
• effective use of cutting edge and machining of smaller workpieces
• wide range of use for almost all areas of application
• effective use of the cutting edge
• with specially adapted coolant supply
• low power consumption, high chip removal rate
CAUTION - PLEASE NOTE!
For optimum results with the SPINWORX®-tooling system we recommend using internal coolant supply
air, emulsion or MQL for chip removal from the tool! Wet machining up to max speed Vc of 140 m/min!
Milling cutter bodies
Catalogue no.
Accessories
Features
d
1
d r
l
3
l
2
l
1
d
2
d
3
z
Threaded shank end mill bodies
d
2
d
d
1
d
3
l
2
l
3
DR07-016-E08-02 16 7 3.5 28.5 1.2 -
M 8 13.8 2 A, B, C, D
DR07-020-E10-05 20 7 3.5 28.5 1.2 -
M 10 18 5 A, B, C, D
DR07-025-E12-06 25 7 3.5 28.5 1.2 -
M 12 21 6 A, B, C, D
DR07-030-E12-07 30 7 3.5 28.5 1.2 -
M 12 21 7 A, B, C, D
DR07-035-E16-08 35 7 3.5 28.5 1.2 -
M 16 29 8 A, B, C, D
Accessories
T6-0,5NM
Torque Fix® - S torque
screwdriver
A > Page
T6 500
Torx interchangeable
bit for Torque Vario®
B > Page
T6 502
Torx MagicSpring compa-
tible bit f. Torque Vario®
C > Page
Z 00043
HTC ceramic paste WS
600 005
D > Page
