pokolm - Milling Cutter Bodies - page 63

63
major application minor application roughing pre-finishing finishing        

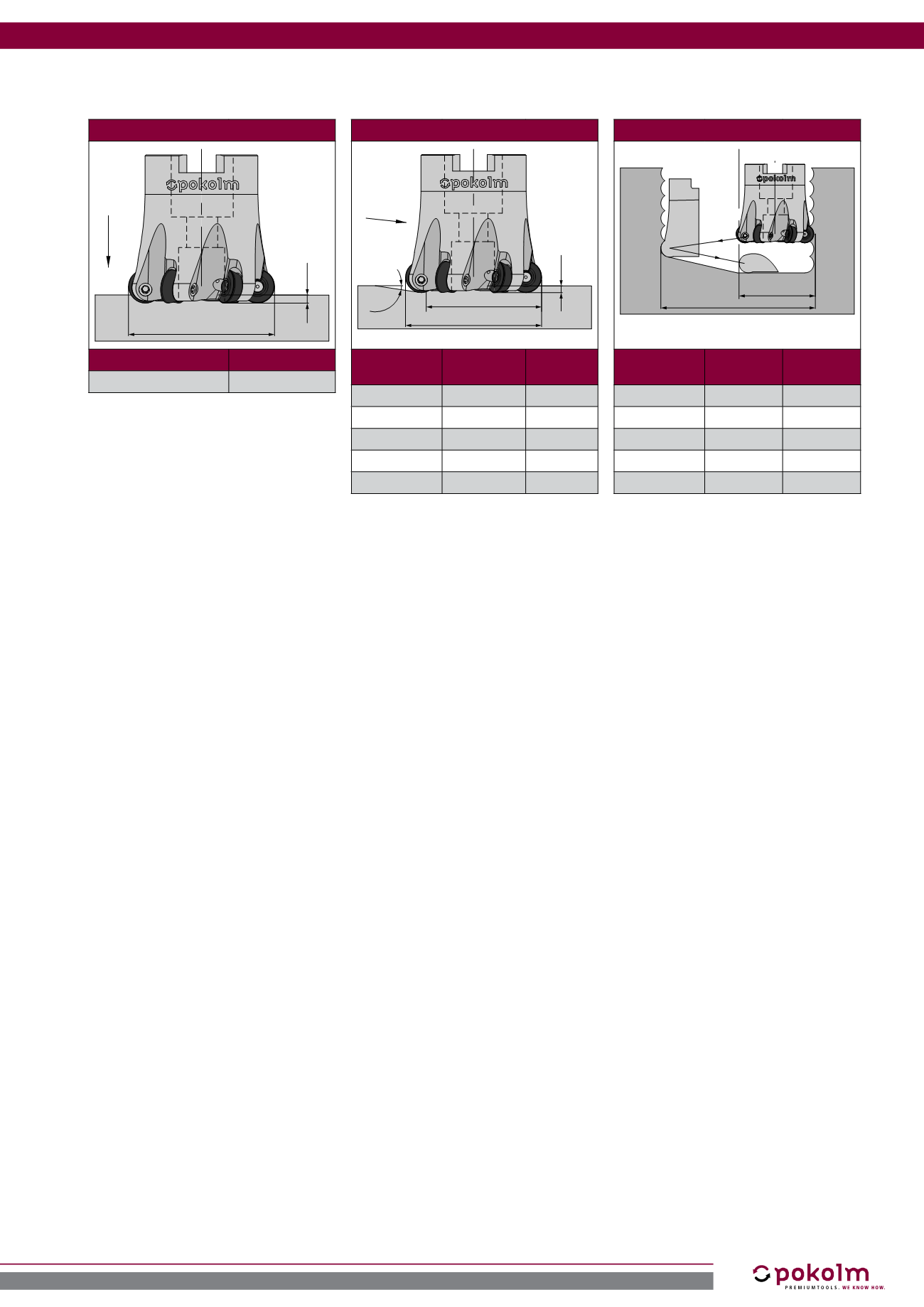

Plunging
d1
X
Cutter diam. d1 X max
16-35 1.2
Extended operation data
Ramping
d1
X
Y
α
Cutter diam.
d1 α° y
16 <16,0 4
20 <8,5 8
25 <5,0 13
30 <3,5 18
35 <3,0 23
Helix
Dmax d1
Cutter diam.
d1 Dmin Dmax
16 20 30
20 28 38
25 38 48
30 48 58
35 58 68
