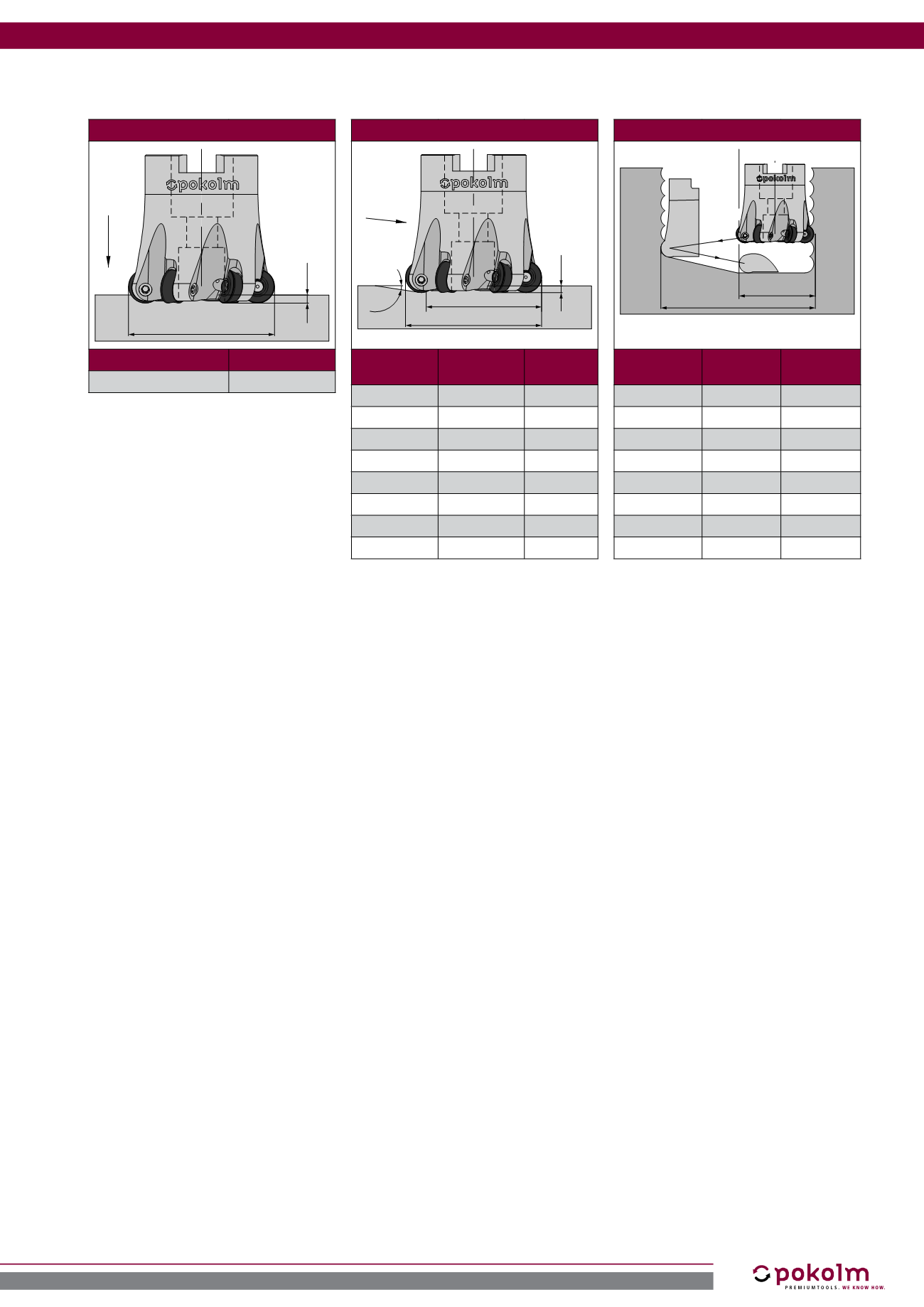

major application minor application roughing pre-finishing finishing        
Plunging
d1
X
Cutter diam. d1 X max
20-52 2.5
Extended operation data
Ramping
d1
X
Y
α
Cutter diam.
d1 α° y
20 <17,0 2
25 <19,5 7
30 <11,5 12
32 <10,0 14
35 <8,0 17
40 <6,0 22
42 <5,5 24
52 <4,0 34
Helix
Dmax d1
Cutter diam.
d1 Dmin Dmax
20 22 38
25 32 48
30 42 58
32 46 62
35 52 68
40 62 78
42 66 82
52 86 102
