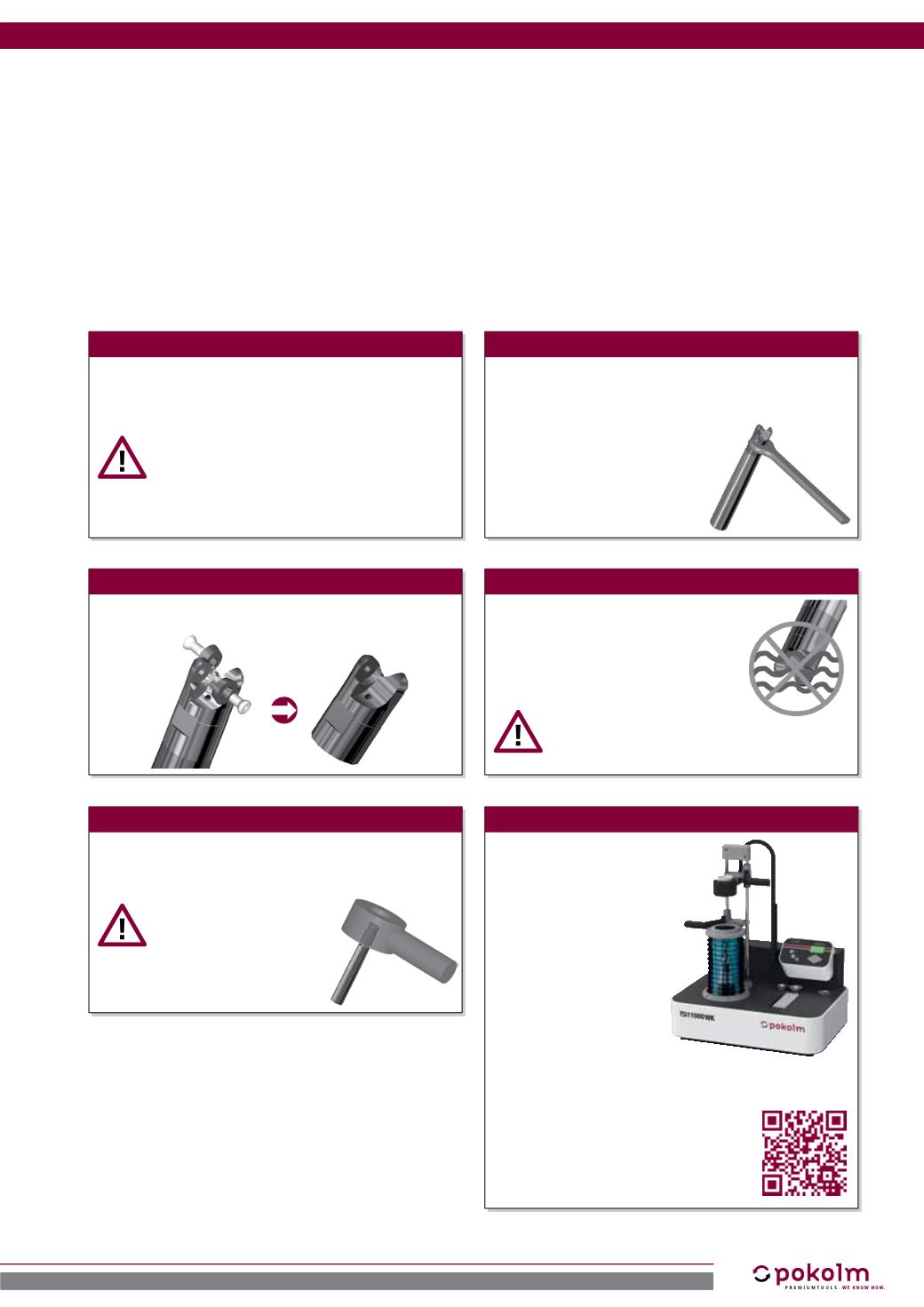

Dismantling:
Preparations
Step 1
Step 2
Step 3
Step 4
Get all the necessary accessories and equipment together
at the workstation before starting heating procedure! (ap-
propriate spanner, safety glasses, protective gloves)
Heat your used combination with the Pokolm Inductive
Shrinking Unit for 6 to 15 seconds, depending on dia-
meter.
Attention: Adaptor and
milling cutter body are
still very hot!
Danger of burning hands or fin-
gers! Protective gloves MUST be
worn!
Attention: You absolutely MUST wear your
safety glasses when dismantling! Used tools
carry swarf and cooling fluid residues which
could spray out during operation!
Remove inserts and screws from milling cutter body.
Attention: Adaptor and milling cutter
body are still very hot! Danger of burning hands
or fingers! Protective gloves MUST be worn!
Inductive heating expands the fitted bore in your cutter body.
Only after heating should you unscrew your cutter body
from your adaptor using an appropriate span-
ner.This step must be possible to perform
without strength. If there is still some
resistance, please heat the cutter body
once more for a few seconds and try
again.
Do not shock cool your unshrunk dismant-
led parts;use the cooling equipment of
your shrinking unit to cool it slowly, or
use the deposit box.
For further inquiries concerning the DUOPLUG
®
sys-
tem, please do not hesitate to contact us.
Recommendation
For the shrinking process
we recommend our com-
fortable Shrinking Station
TSI11000WK with a great
number of innovative attri-
butes. Perfectly matched
to POKOLM products, the
semi-automatic shrinking
and fluid-supported cooling
process is run in a single
position in the unit. The ope-
ration concept is especially
user friendly.
For more information order the POKOLM brochure
about Shrinking technology.
Also available as PDF file at the download
area of the POKOLM Website, or simply
follow the QR Code:
