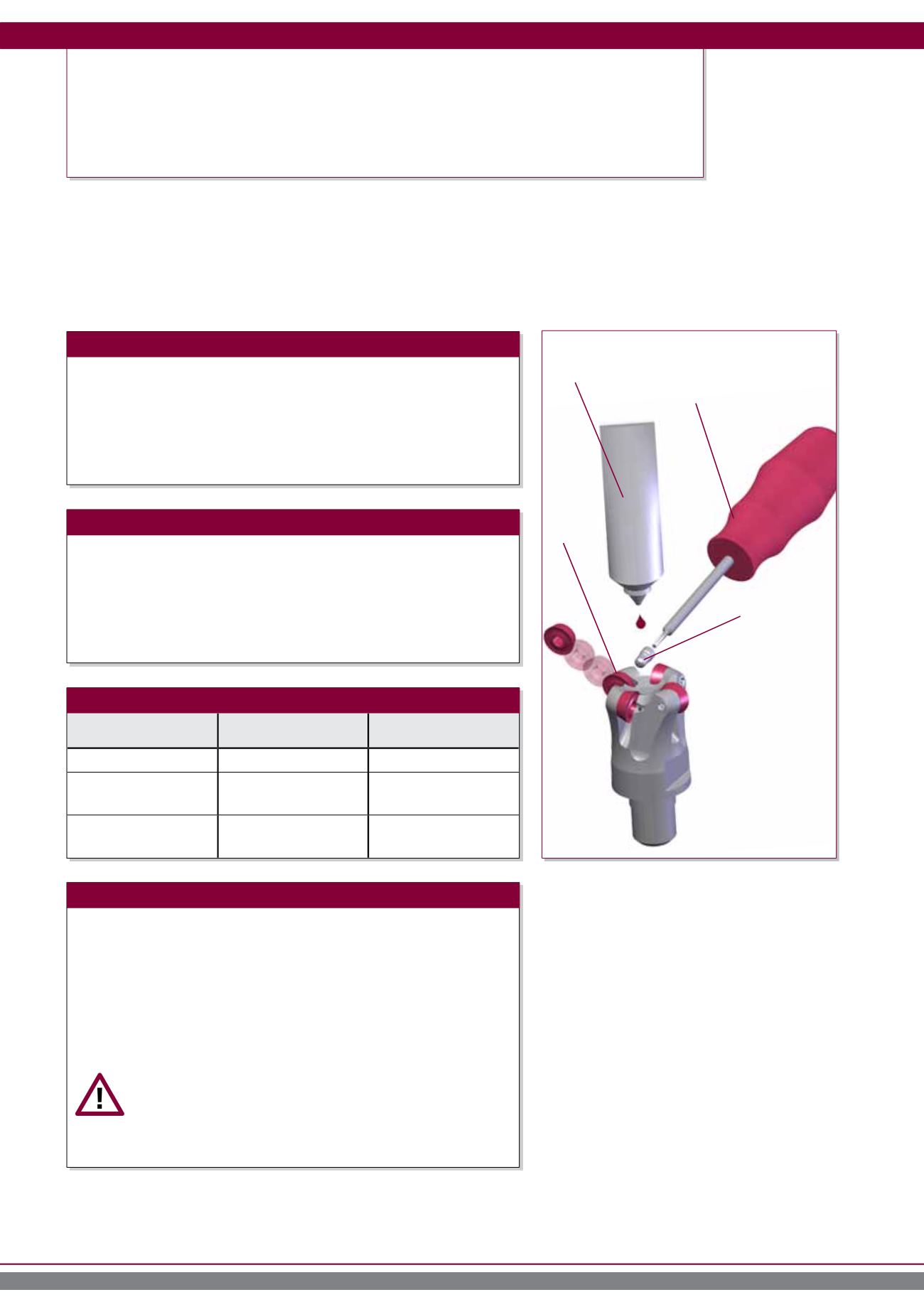

ASSEMBLING INSTRUCTIONS
Fitting of
SPINWORX
®
inserts in the tool
In order to maintain optimum and safe use of these tools, you should pay attention to following notice:
Step 1: placing inserts into the seat
Step 2: inserting the pin
Tightening torques
CAUTION! Please note!
Place the inserts (1) into the seat provided. Apply the paste included
(4) to the thread of the pin (2) and make sure no paste (catalogue
number „Z 00043“) gets onto the contact surface.
Remove any surplus before using the tool.
Insert the pin (2) into the screw attachment from behind and use the
torque key to tighten according to the specified tightening torque.
We recommend using our pre-set torque key with.
SIMPLE HANDLING THANKS TO CONVENIENT TOOL
We recommend our torque keys with pre-set tightening torque as a
convenient and safe alternative to conventional Torx or torque keys.
For optimum results with the
SPINWORX
®
-tooling
system we recommend using internal coolant supply
air, emulsion or MQL for chip removal in the tool!
Pre-set Torque
key (3)
Pin (2)
Insert (1)
Paste (4)
Insert
Torx´ size
Tightening torque
1.4 Nm
2.5 Nm
0.5 Nm
Assembling instructions - Spinworx®
